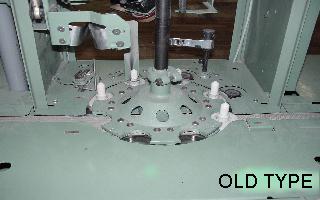

The CBF turlette of Mach corner has a new style roller Until now!! The bearings oftray rotation caused poor rotation by yarn waste and dust etc., and bobbin rotationbecame bad and had become one of the causes of a cutting power fall of yarn end ata rotary cutter position, and also the rate fall of interference. Furthermore, wear of atray has also been caused. Moreover, do not drop bearing in the case of plate removalat the time of bearing exchange, or a special washer is not dropped, or it does notbecome precocious although workability is good.

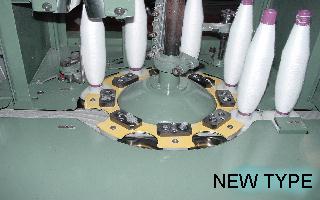

1.   This new style guide has no bearing rotating the tray directlyand seldom bearings become poor rotation by yarn waste. (The life of bearing is 3 ormore times)

2.   Since bearing house is upper part of the base plate, exchangeof bearing is also easy.

3.   It can be checked whether bearing is rotating normally or notfrom the upper part, and exchange time can be grasped pertinently.
